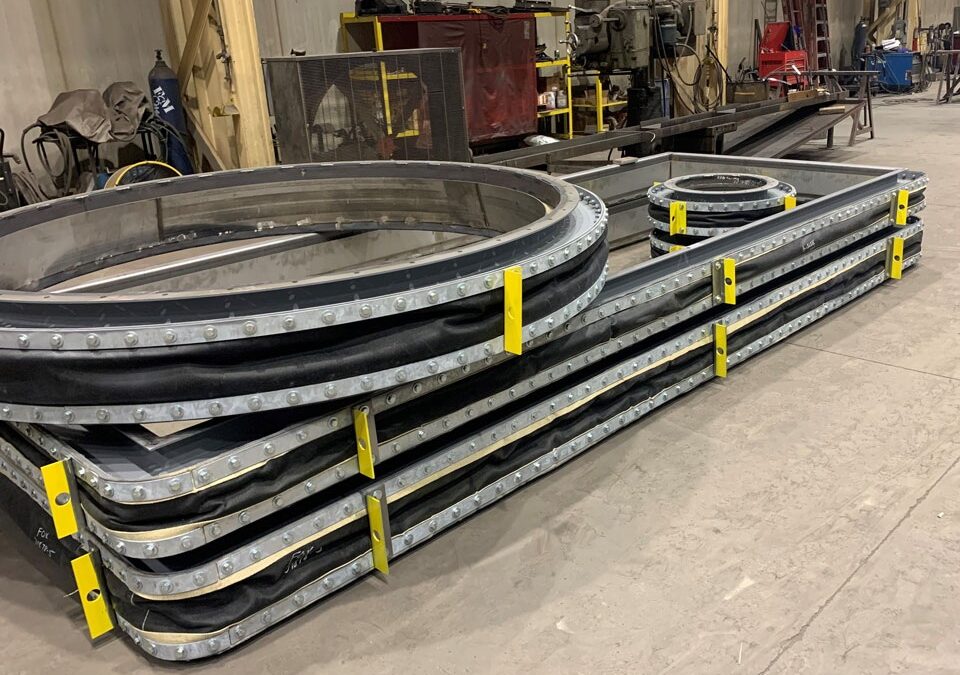

In industrial ductwork and piping, managing thermal expansion and vibration is crucial for system longevity. While metal joints have traditionally been the go-to solution for many engineers, fabric expansion joints are rapidly gaining popularity for specific applications. These non-metallic connectors offer a unique set of physical properties that solve problems that metal simply cannot address. At Fox Equipment, we understand that choosing the right component can mean the difference between a smooth operation and costly downtime. If you are struggling with corrosion, limited movement, or excessive noise in your current setup, it might be time to look beyond traditional metal options.
1. Superior Multi-Directional Movement
One of the most significant limitations of metal expansion joints is their rigidity regarding movement axes. Metal joints generally handle axial movement well but struggle with lateral or torsional shifts without complex, expensive hardware. In contrast, fabric expansion joints are inherently flexible in multiple directions simultaneously. They can easily accommodate axial compression, lateral offset, and angular misalignment all at the same time. This flexibility allows for greater tolerance in ductwork alignment and reduces the complexity of your piping design.
2. Exceptional Corrosion Resistance
Industrial environments often involve aggressive chemicals, acidic flue gases, or high-moisture conditions that can rapidly degrade metal. Even high-grade stainless steel or exotic alloys can succumb to stress corrosion cracking over time. Fabric joints, however, are constructed from layers of advanced materials like PTFE, fiberglass, and elastomers. These materials are chemically inert to a vast range of aggressive substances. By utilizing fabric expansion joints, you effectively eliminate the risk of corrosion-related failures in chemically hostile environments, ensuring a much longer service life for your connections.
3. Vibration Dampening and Noise Reduction
Metal is an excellent conductor of sound and vibration, which acts as a detriment in systems connected to fans, blowers, or turbines. A metal joint will often transmit these vibrations downstream, potentially causing fatigue damage to hangers, supports, and sensitive instrumentation. Fabric acts as a natural shock absorber. The soft, multi-layered composition of these joints breaks the bridge of sound and vibration. This isolates rotating equipment from the rest of the ductwork, significantly lowering ambient noise levels and protecting adjacent equipment from vibrational fatigue.
4. Minimal Reacting Forces
When a pipe expands thermally, it pushes against the expansion joint, which pushes back against the system anchors. Metal joints, due to their spring rates, can exert tremendous reaction forces on these anchors and the surrounding structure. Fabric expansion joints have extremely low spring rates compared to their metal counterparts. This means they require very little force to compress or move. Consequently, you can design lighter, less expensive support structures and anchors, reducing the overall capital cost of the facility’s construction or retrofit.
5. Installation and Maintenance Simplicity
From a maintenance perspective, dealing with heavy metal hardware is labor-intensive and often requires cranes or heavy lifting gear. Fabric joints are lightweight and much easier to handle. In many cases, a replacement fabric belt can be installed without removing the entire frame, known as a “belt-only” replacement. This feature drastically reduces maintenance hours and the need for heavy equipment during shutdowns. For facility managers, the ease of installing fabric expansion joints translates directly to reduced labor costs and shorter maintenance intervals.
High-Quality Fabric Expansion Joints for Your Facility
Are you ready to improve your system’s flexibility and durability? Integrating fabric expansion joints into your facility offers a cost-effective, long-lasting alternative to traditional metal. Fox Equipment is dedicated to providing top-tier industrial solutions that meet the rigorous demands of your operations.
Contact Fox Equipment today to discuss your specific needs and discover how our fabric expansion solutions can benefit your business.
